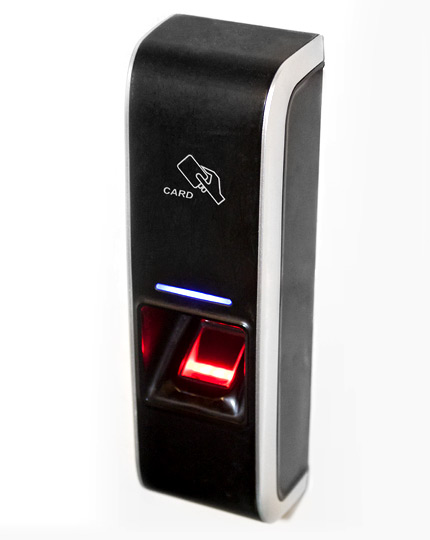

Access Control at Your Fingertips

If only the ultimate in Access Control is good enough for you – then look no further than our Biometric and Contactless Smart Card access control scanner. It combines the latest generation Contactless Smart Card electronics with a biometric fingerprint reader for ultimate versatility and security.

When a Smart Card is presented to the Smart Card & Biometric scanner, its serial number is transmitted to the main Access Controller that matches it against an existing access rights’ database. Depending on the specific system settings, the Controller can  request a further biometric authentication and the user is prompted to place their finger on the fingerprint sensor.

A comparison is then made between the live fingerprint and the stored fingerprint template and if the two match, access is permitted.

In an elegant case and easy to use, this product is for those who want the absolute peace-of-mind, certainty and the assurance that only the right people can gain access to your sensitive or dangerous areas.

Key Features

  • Biometric only or Smart Card & Biometric functionality.
  • The unit can be directly connected via a peer to peer cable connection.
  • Supports HID Prox™, HID iClass™, MiFare™, and DesFire™ cards.
  • IP enabled,Ethernet 10/100Mb.
  • Operate from a 8VDC to 13.6VDC supply.
  • Control and Reset functions.
  • Biometric reader interface.
  • 4 Serial ports.
  • 1 port (RS485 interface to clock and External Scanner interface).
  • 1 port with full modem control ( Modem RS232 Interface).
  • 2 SPI port (one port is used for scanner interface).
